Hi guys, I have noticed there is a bit of conflicting and plain random info on the RSM II and how it works with our V8's.

Upload


It works for everything, including speed cut.

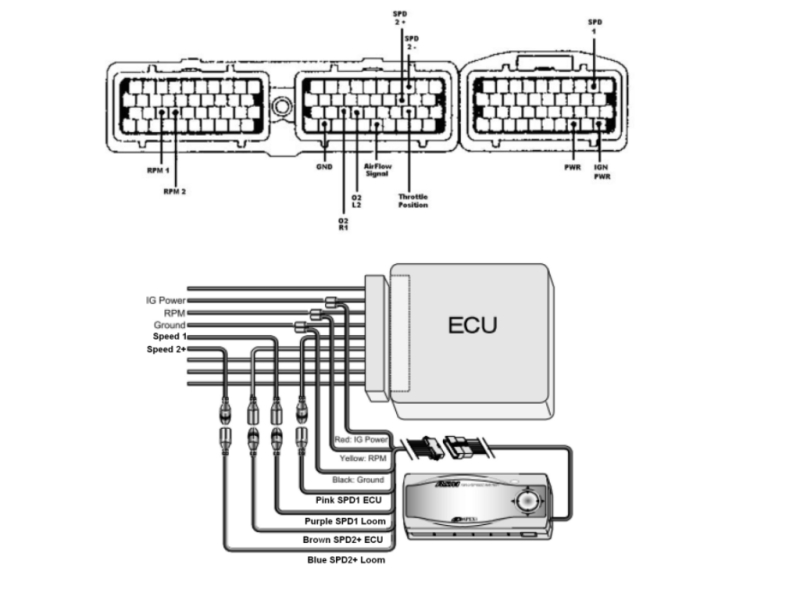

Use the apexi manual, except for the wiring diagrams use these:
Upload


If anyone wants a bigger version of this diagram PM me, I'll email you one.
Spencer Cameron
TryHard
NSW
JZZ30 (converted Manual)

Posts: 129
Reg: 04-2008

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Tuesday, April 06, 2010 - 01:43 am, by:  Spencer Cameron (Switchio) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
You use the pin diagram to find the wires you need coming in/out of the ECU and then splice or redirect each according to that bottom pic.

Its not very hard, but it'll probably make more sense to you once you pull up the carpet and have a look at the ECU and the loom attached to it.
Joe Russell
DieHard
Manawatu
4.0 V8 GT-L (UZZ31)

Posts: 623
Reg: 10-2008

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Tuesday, April 06, 2010 - 07:47 pm, by:  Joe Russell (Joe_r) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
Cheers for elaborating Spencer
Scott Casey
TryHard
nsw
soarer v8

Posts: 443
Reg: 02-2008

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Thursday, April 08, 2010 - 06:49 am, by:  Scott Casey (V8soarer_1991) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
make sure that you leave about 2 - 3 inches between where you splice into the two speed wires.
