hey guys, acquired a distributor for HID Kits. Was gonna get some myself, but wondered if anyone is interested as well?
SPECIFICATIONS
SPECIFICATIONS:
1.NORMAL INPUT VOLTAGE: DC 12.8V
2.ALLOWABLE INPUT VOLTAGE: DC 9V ~ 16V
3.NORMAL INPUT CURRENT:3.5+/- 0.5A
4.NORMAL OUTPUT WATTAGE:35W +/- 5%.
5.PROTECTION OF VOLTAGE: Lv <=>=18V
6.OPERATING TEMPERATURE RANGE : - 40 ~ + 150C
7.79mm ( L ) X 78mm ( W ) X 38mm (H)
**************************************************************
35W BALLAST FEATURES:
1.RAPID START: REACH 80% OF NORMAL STATE WITHIN 4 SEC. AT THE BEGINNING
2.HIGH FREQUENCY DC - DC CONVERTER
3.LOW FREQUENCY DC-AC INVERTER
4.LOWER VOLTAGE RATING POWER DEVICE
5.CONTROL BY USING A CMOS IC
6.INCREASED POWER FACTOR
7.SMALL SIZE AND LIGHTWEIGHT
8.EASY TO ASSEMBLE
9.SHORT AND OPEN OF PROTECTION (0.2SEC. SMART START )
**************************************************************
AN ADVANCED TECHNOLOGY LIGHTING SOURCE:
1.THE 35W XENON HID HEAD LIGHT CAN SUPPLY EQUIVALENT TO 170W BEAM OF TRADITIONAL HALOGEN LAMP AND 300% EFFICIENCY.
2.THE TRUE HID BALLAST IS USED ADVANCED TECHNOLOGIC CIRCUIT CHARACTER THAT CAN COPE WITH ANY BAD POWER CIRCUMSTANCE OF CAR.
3.THE XENON BULB IS USED PURE HIGH QUALITY QUARTZ AND ADVANCED MATERIAL, WHICH CAN MAKE A SUPER FAIR BEAM.
4.THE USE LIFE OF XENON HID LAMP IS ABOUT 2500 HOURS IS EQUIVALENT TO 5 TIMES OF HALOGEN LAMP.
HID Conversion Kit Low Beam
Color Temperature: 4.2K , 6K , 7K, 9K ,12K
Available Bulb Types: H1,H3,H4,H7,H8,H9,H11,H13,9004,9005,9006,9007
For 10pcs
$210 per set + $16(postage)+ 10% gst = $248.60
for more than 20pcs, theres only a saving of a few dollars. if interest is way more that 20, ill need to get another price on postage.

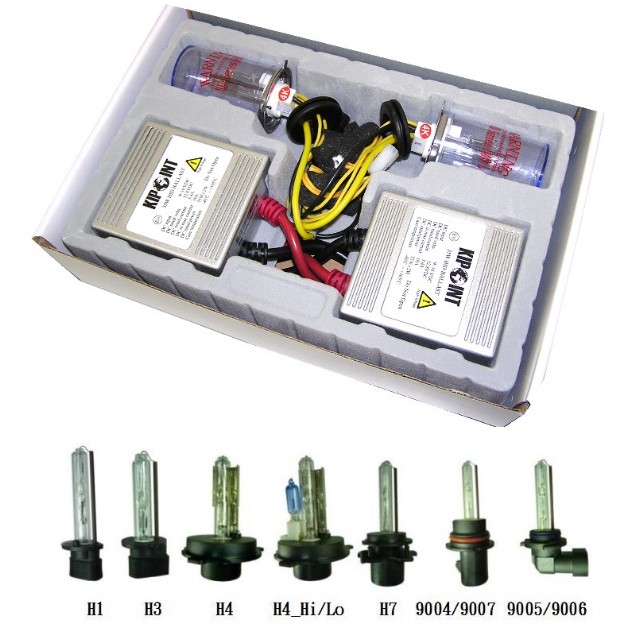

EDIT: 1 HID Conversion Kit Contains 2PCS of Ballast, 2PCS of HID Bulb , 1Pack of Installation Accessiories.
Interest List:
1.Wayne Koh - 2 Sets(6K)
2.Dan McColl - 2 Sets, 2 Spare Globes(4.2K)
3.Raymond Hector - 1 Set(4.2K)
4.Luke Barnes - 1 Set(7k)
5.Ken Cornell - 1 Set(6K)
|
Dan McColl
Goo Roo
Victoria
UZZ-32 V8 Soarer #138
Posts: 1219
Reg: 07-2005
|
Is this 210 a pair??
Are spare globes available??
I the answers are yes and yes, then put me down for 2 pairs and 2 spare globes, 4300K
Ta. |
Raymond Hector
Tinkerer
victoria
Twin Turbo
Posts: 18
Reg: 06-2006
|
You can put me down for one kit.
4.2K |
Wayne Koh
TryHard
Western Australia
TT
Posts: 181
Reg: 07-2005
|
yup that's 210 a set, and spare globes are available at $80 a pair including postage.
the bulbs also come with 12 month warranty |
Cihan Aday
Goo Roo
Emanage is tha good.
JZZ30
Posts: 1081
Reg: 07-2005
|
Good stuff Wayne!
I wonder what the quality is like though?
1 year warranty, who is taking care of this? |
Wayne Koh
TryHard
Western Australia
TT
Posts: 182
Reg: 07-2005
|
If a kit breaks/faults within 12 months, you return it to the manufacturer in Taiwan and they send u a replacement/repaired current one.
The only cost of the warranty is the postage back to taiwan, they send it back to you for free. The wait/fix time is generally 7 days after they receive it, then an additional 3-4 days of postage time. |
Cihan Aday
Goo Roo
Emanage is tha good.
JZZ30
Posts: 1084
Reg: 07-2005
|
Sounds like a very good deal Wayne.
I have just heard about quality issues involving HID kits, thats all. |
Antony Borlase
Tinkerer
QLD
UZZ31
Posts: 56
Reg: 07-2005
|
What about hi-beams? only mentions low beams up above? |
Nathan Richardson
TryHard
Queensland
UZZ 32 #445
Posts: 103
Reg: 02-2006
|
Hmmmm, what sort of time frame are we looking at Wayne?
Im a bit short of funds at the moment.
What are the limitations with fitment to the soarer as for as the models go? (4.2k, 6k-12k etc)
HID may not be a great idea with the standard reflector type Hi-beam in the soarer. Just a thought |
Cihan Aday
Goo Roo
Emanage is tha good.
JZZ30
Posts: 1085
Reg: 07-2005
|
The standard low beam is 9005, isnt the high beam 9006? |
Aaron Mead
TryHard
NT
TT
Posts: 350
Reg: 03-2006
|
yeah it suxs trying to fire up HID's on high beam, takes too long to "get the point" accross. Id stick with something like phillips super bright filament types for high beams. |
Mike Triggs
DieHard
Norfolk Island
3.0GT G-Pack
Posts: 683
Reg: 07-2005
|
Cihan Aday wrote on Tuesday, July 11, 2006 - 06:10 pm:The standard low beam is 9005, isnt the high beam 9006?
All the low/high beams on our two are 9005J- 9005 require modification to fit. If the inner holder is the right size (20mm vs 22mm from memory- the latter being 9006) there's a little plastic ring needing changing to fit 9005 straight in. |
Wayne Koh
TryHard
Western Australia
TT
Posts: 183
Reg: 07-2005
|
Time Frame: earliest a few weeks. latest a few months?
HID is for low beams only.
A few guys have installed a different brand(prolumens) on their cars, i haven't heard that they had problems with the sizing? anyways if someone does a search and finds out post it on here. |
Benjamin Burgess
DieHard
NSW
Toyota Soarer GT-TL
Posts: 553
Reg: 07-2005
|
This is CHEAP!! if they work. I'm pissed cause I just brought a HID kit off ebay for $330 delivered. Its works great, but 80 bucks cheaper is always good if its same qual. |
Nathan Richardson
TryHard
Queensland
UZZ 32 #445
Posts: 114
Reg: 02-2006
|
Hmmm, Ill keep an eye on this thread |
Callum Finch
Goo Roo
WA
Soarer TT
Posts: 1486
Reg: 09-2005
|
Ill be interested in putting my name down for the second wave of purchases ;) |
Ben Daniel
TryHard
WA
Twin Turbo
Posts: 272
Reg: 03-2006
|
I was gonna put a set of these on my car as majority of my Soarer driving is at night but i was informed that they aren't legally allowed on the car unless its got the proper lenses to go with it ??? |
Greg Nikitiuk
TryHard
Vic
Soarer TT
Posts: 478
Reg: 07-2005
|
Very much interested |
Wayne Koh
TryHard
Western Australia
TT
Posts: 184
Reg: 07-2005
|
the thing is that the soarer headlights have a projector lens on it so it focuses the light to a certain area. my mate has HID's on his skyline and his headlights don't have projectors. its splatters everywhere! |
Maurice Diggler
Tinkerer
Victoria
Twin Turbo
Posts: 57
Reg: 06-2006
|
Wayne Koh wrote on Tuesday, July 11, 2006 - 04:43 pm:If a kit breaks/faults within 12 months, you return it to the manufacturer in Taiwan and they send u a replacement/repaired current one.
Don't be so sure, I'm yet to find a HID warranty that covers the GLOBES.
The globes are the most common thing to fail, and replacements aren't covered under warranty, only the ballasts are covered. Probably a
good idea to email them Wayne and check.
Ben Daniel wrote on Tuesday, July 11, 2006 - 10:15 pm:i was informed that they aren't legally allowed on the car unless its got the proper lenses to go with it ???
It's true, they aren't legal as they aren't ADR aproved, they don't have the correct lenses and they don't have a wiper for the lense.
Also, as of a few months ago it became illegal to modify your headlight globes in any way in Victoria. If a cop sees them, it's an instant defect.
Aaron Mead wrote on Tuesday, July 11, 2006 - 06:38 pm:yeah it suxs trying to fire up HID's on high beam, takes too long to "get the point" accross
In regards to warm up time, I changed my fuses from 15A-25A and with the lower resistance of the new fuse, they light up in a heartbeat, twice as fast as before I changed the fuse.
The HID globe isn't designed to be flashed on/off quickly, they are designed to be heated up and left on, repeatedly turning them on/off will severly damage your globe and blow it up fairly quickly. Which is exactly why they aren't covered under warranty as they are easily misused.
At approx $75 to replace the common globe and it can be costly if you don't treat your HID globes right. |
Wayne Koh
TryHard
Western Australia
TT
Posts: 186
Reg: 07-2005
|
yeah no need to email maurice, i have the sales manager on msn. yes the 12 months warranty is on the entire kit including bulbs. spare bulbs also come with 12 months as stated above |
Luke Barnes
Tinkerer
Queensland
GT Limited V8 UZZ31
Posts: 23
Reg: 05-2006
|
Count me in. 7000k and upwards will do be just fine! keep us posted on when it will become official! |
Ken Cornell
TryHard
Western Australia
4.0GT V8 Soarer
Posts: 463
Reg: 01-2006
|
Interested in 6K set!
Let me see, I got a 92, so the low beams'ud be 9005's??
We'll have to have a little get together Wayne, and sort out my electrics first  |
Wayne Koh
TryHard
Western Australia
TT
Posts: 187
Reg: 07-2005
|
no worries ken, what's wrong with your electronics? |
Jose-Antonio Castillo
DieHard
NSW
Soarer VVTi
Posts: 764
Reg: 07-2005
|
Wayne Koh wrote on Tuesday, July 11, 2006 - 11:40 pm:the thing is that the soarer headlights have a projector lens on it so it focuses the light to a certain area. my mate has HID's on his skyline and his headlights don't have projectors. its splatters everywhere!
Kinda right. Projector-based headlights are about the best we're going to get in terms of easily converting halogen to HID. Reflector-based headlights are just crap and scatter the light everywhere. |
Maurice Diggler
Tinkerer
Victoria
Twin Turbo
Posts: 60
Reg: 06-2006
|
Wayne Koh wrote on Wednesday, July 12, 2006 - 02:54 am:yeah no need to email maurice, i have the sales manager on msn. yes the 12 months warranty is on the entire kit including bulbs. spare bulbs also come with 12 months as stated above
That's not bad then. Being so cheap, hopefully the quality is there.
I've got a set of JSM HID's and I can't fault them, they fricken rawk! |
Ken Cornell
TryHard
Western Australia
4.0GT V8 Soarer
Posts: 471
Reg: 01-2006
|
Wayne Koh wrote on Wednesday, July 12, 2006 - 10:24 am:no worries ken, what's wrong with your electronics?
Surging?? thread under Electrical. Hoping just a loose terminal. |
Mike Thomas
Newbie
AB
Soarer TT
Posts: 5
Reg: 09-2007
|
would i be well-done to buy a set of clear lens projector headlights for my 91 soarer, and throw in an HID kit? ive been toying with the idea but didnt know enough about the types, projector, reflector, standard halogen, and what comes stock etc |
