Hi Guys I am in desperate need of advice. My connector (round black 3 pin) from the wiring loom to the alternator has burnt and cracked. I bought a new alternator and need to know what colours on the wiring loom is what purpose. There is a White, Black and Striped yellowish and green wire. My question is which of these wires are L, IG and S and with which ones do I connect it to the new adaptor harness, picture included. Any help would be greatly appreciated.
http://www.ebay.com.au/itm/141586890467
Upload
Tom Richards
Goo Roo
nsw
V8

Posts: 2142
Reg: 08-2005

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Wednesday, April 15, 2015 - 04:29 pm, by:  Tom Richards (Tomr) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
post under electrical and you will get more replies
Brett Harrison
DieHard
QLD
JZZ30

Posts: 941
Reg: 09-2005

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Wednesday, April 15, 2015 - 06:04 pm, by:  Brett Harrison (Bretto) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)

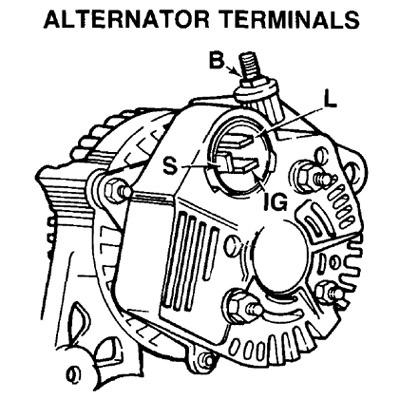

Sense, light, Ignition as below. Alternator side.

http://www.super7.dk/pictures/toyota_alternator.jpg
Eugene Smith
Tinkerer
Qld
V8

Posts: 73
Reg: 02-2012

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Thursday, April 16, 2015 - 03:43 pm, by:  Eugene Smith (Eugene) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
Thanks Brett appreciate it, works so far...
Brett Harrison
DieHard
QLD
JZZ30

Posts: 942
Reg: 09-2005

Top of pagePrevious messageNext messageBottom of page Link to this message

Rating: N/A
Votes: 0 (Vote!)

 Thursday, April 16, 2015 - 06:16 pm, by:  Brett Harrison (Bretto) Quote hilighted text Edit Post Delete Post Print Post   View Post/Check IP (Moderator/Admin Only) Move Post (Moderator/Admin Only)
After install, test for charging Volts, should be around 14.5 volts at idle.
